Aberlink CMMs

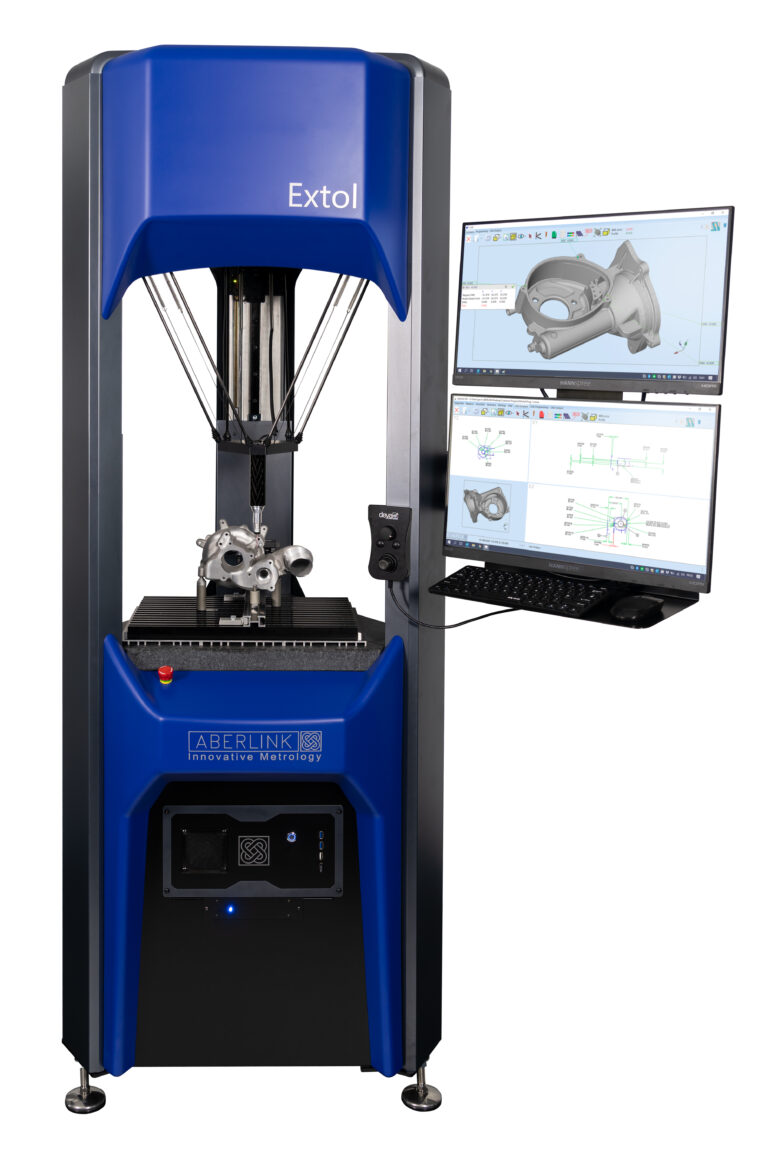

Extol CMM

Designed for robustness and reliability, the Extol CMM will run around the clock making it ideal whether it is positioned next to a machine tool, in a manufacturing cell, or used in a dedicated inspection area.

Five temperature sensors monitoring both the machine and ambient temperature ensure that the Extol is capable operating in uncontrolled environments and reporting measurements as though they had been taken at 20°C. The software will also produce a warning should the temperature be changing at a rate that is not conducive with reasonable metrology practice.

Robust, accurate and reliable, the Extol CMM is the perfect solution to automatically verify part quality for critical components.

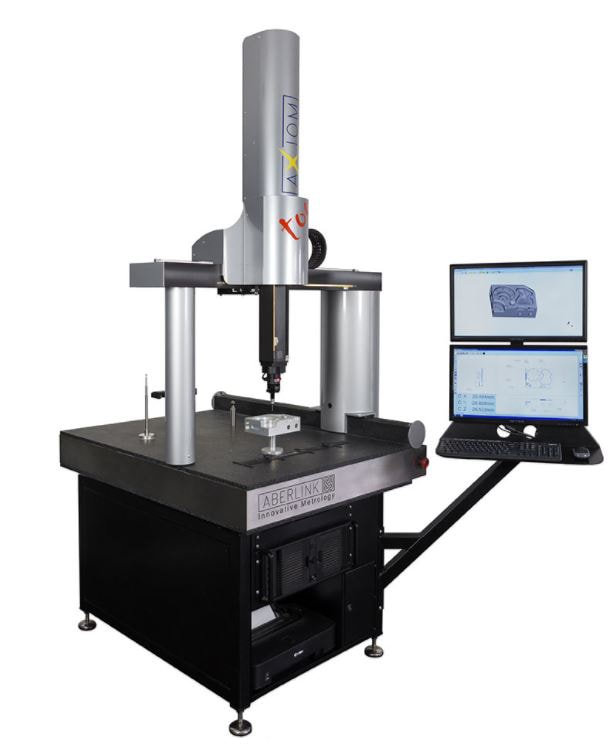

The Axiom too range of reasonably priced high performance CNC CMM’s are ideal for volume production. The high quality shop floor design features Aberlink’s easy-to-use software plus the flexibility of touch probe and non-contact inspection using the optional Aberlink CMM camera.



The Axiom too HS utilizes 0.1μm resolution scales on each axis and an improved drive system. Incorporated
with state-of-the-art error mapping techniques this means that the HS model is the most accurate machine ever produced by Aberlink.

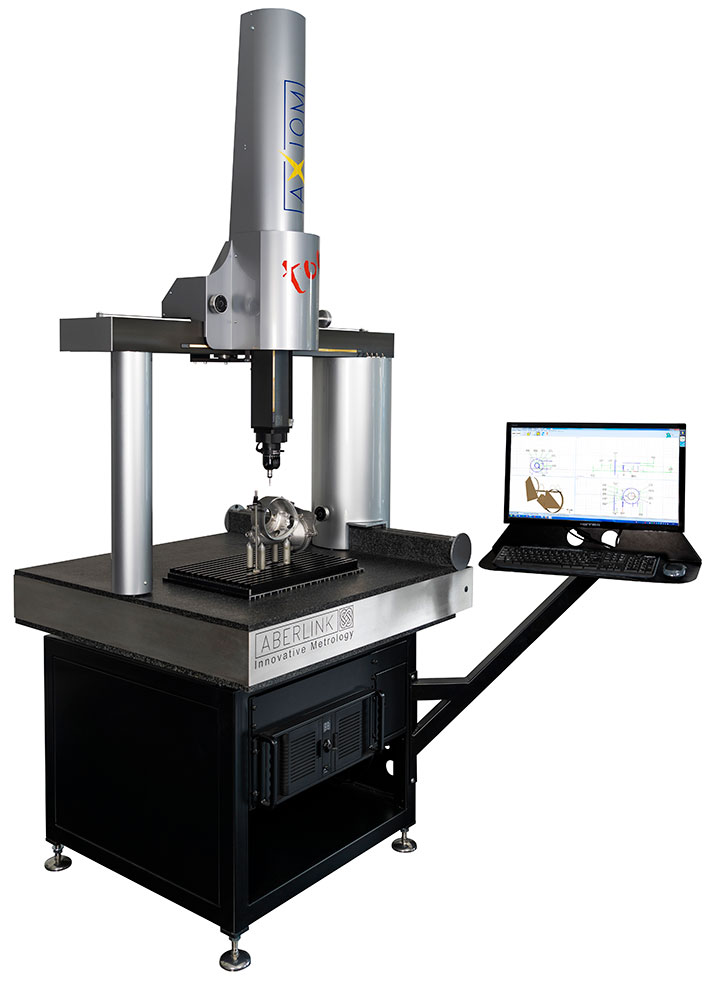

The Axiom too range of manual CMMs are an inexpensive solution for one off inspection. The high quality shop floor design features Aberlink’s easy-to-use software and the unique option to upgrade to full CNC at any time.

The Zenith 3 range of CMM’s are a cost effective metrology solution for big and heavy parts. The high quality shop floor design features Aberlink’s easy-to-use software plus the flexibility of touch probe and non-contact inspection using the optional Aberlink CMM camera.

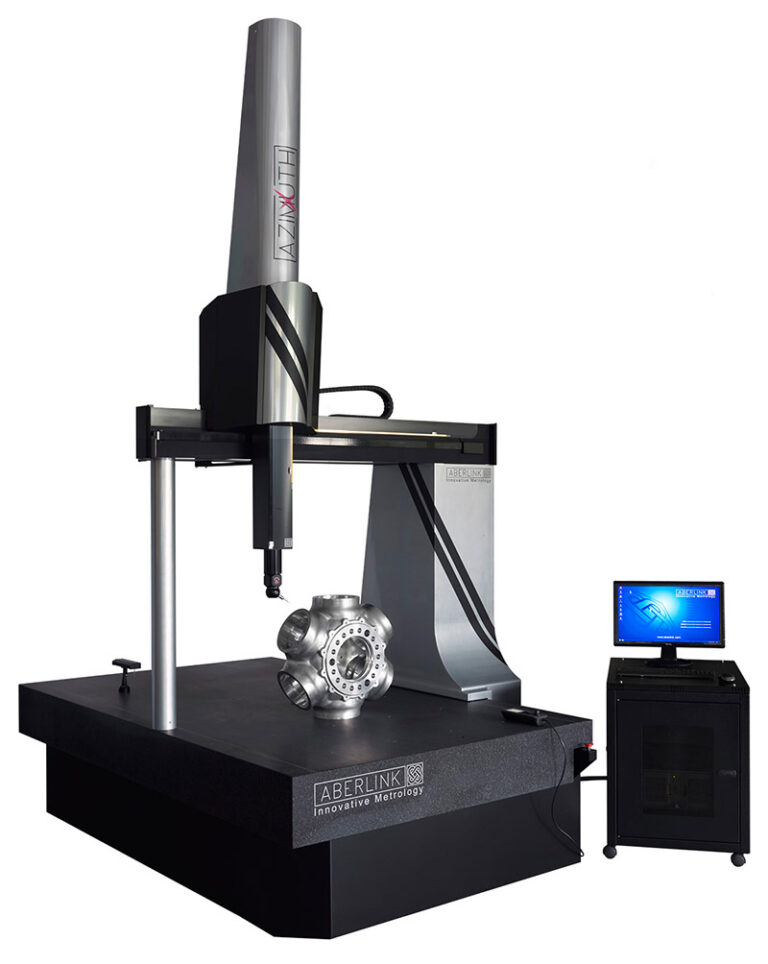

As CMMs get larger, it is not simply a case of scaling up the design of smaller models. Stiffness of the structure is critical, but weight must also be kept to a minimum. The Azimuth CMM is not only Aberlink’s largest in their range of CMM products, but it is the culmination of over twenty years experience and excellence in the design and manufacture of innovative metrology equipment incorporating the very latest materials technology.

The Horizon CMM breaks new ground in design and innovation using frictionless linear drives, which are the key to its fast and exceptionally smooth motion.

The kinematic isolated drive structure is completely independent of the CMM structure and ensures that the motor thrust is directed through the centre of gravity of the moving parts. This not only avoids acceleration induced metrology errors but also has the effect of thermally isolating the motors from the metrology structure of the CMM.
