Next Generation Of Shop Floor Hardened, Non-Cartesian CMM

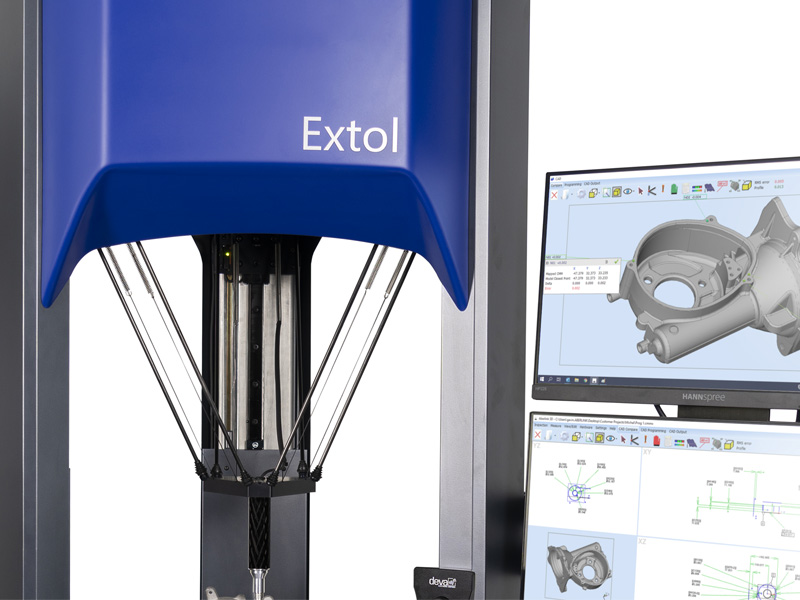

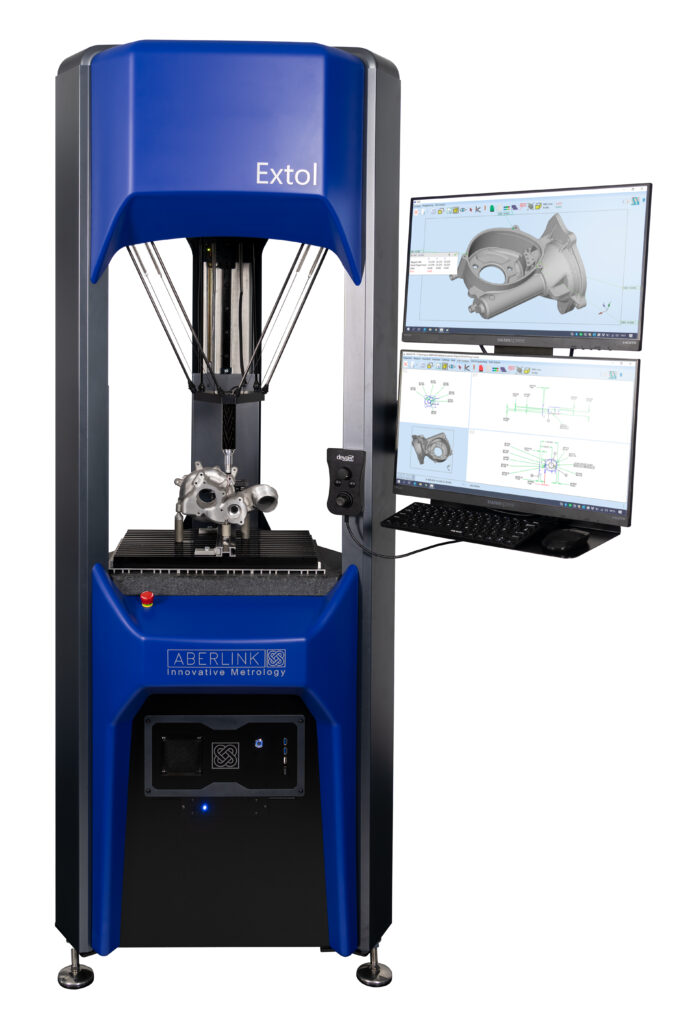

True to Aberlink’s heritage for innovation, the Extol is the world’s first CMM to utilise a delta mechanism.
Designed for robustness and reliability, the Extol CMM will run around the clock making it ideal whether it is positioned next to a machine tool, in a manufacturing cell, or used in a dedicated inspection area.
Five temperature sensors monitoring both the machine and ambient temperature ensure that the Extol is capable operating in uncontrolled environments and reporting measurements as though they had been taken at 20°C. The software will also produce a warning should the temperature be changing at a rate that is not conducive with reasonable metrology practice.
Robust, accurate and reliable, the Extol CMM is the perfect solution to automatically verify part quality for critical components.

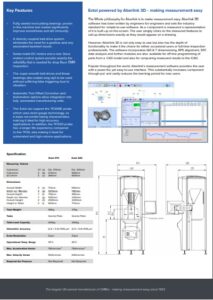

Spec Sheet
Automation
The automatic tool offset correction available with the Aberlink 3D software compliments the attributes of the Extol perfectly allowing utilisation as part of a fully automated production process in the midst of a manufacturing environment.
- Fully sealed recirculating cross-roller bearings for dirt immunity
- Swiss-made DC motors and new Deva motion control system provide shop floor reliability
- Super-smooth belt-drives and linear bearings enable long styli to be used without false triggering through vibration
- Automatic tool offset correction and automation options allow integration into fully automated manufacturing cells
- Aberlink’s revolutionary easy-to-use measurement software
- Shortest learning curve of any equivalent system – 1 day without prior CMM experience
- Smallest overall footprint of any comparable size shop floor CMM
- Industrial joystick as standard
- Aberlink 3D measurement software for touch probe feature inspection
- Windows based controller
- Renishaw TP20 probe system
- Aberlink probe stylus kit
- Aberlink Ø19mm sphere CMM requalification kit
- User training course – up to 4 trainees
- 12 months full parts and labour warranty
- Free telephone helpdesk support
- Free software upgrades – no maintenance fees or contracts
- Machine Options
- Automation Interface Unit
- Fixture Kit
- CAD Comparison Software
- Programming from CAD Software
- Dual Monitor
| Axis Travel (mm) | XY Dia. 370 Z 270 |
| Overall Size (mm) | X 730 Y 715 Z 2000 |
| *Volumetric Accuracy | (2.6 + 0.4L/100) µm |
| Scale Resolution | 0.1µm |
| Operational Temp Range | 5 – 45°C |
| Table | Solid Granite plate |
| Table Load Capacity | 200kg |
| Max. Velocity Vector | 500mm/sec |
| Max. Acceleration Vector | 750mm/sec² |
| Air Consumption | None |
| Required Air Pressure | Not required |
*The machine should not be positioned where it will be subjected to rapid changes in temperature. Max rate of ambient temperature change should not be more than 1°C/hour.
