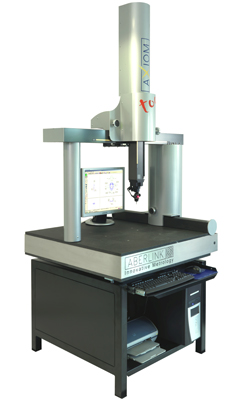

The Axiom too range of manual CMM’s are an inexpensive solution for one off inspection. The high quality shop floor design features Aberlink’s easy-to-use software and the unique option to upgrade to full CNC at any time.
Features
Package
Options
Spec
Features
- Reliable high accuracy 3D inspection
- Aberlink’s easy-to-use measurement software (now standard on many OEM systems)
- Shortest learning curve of any similar system – 1 day without prior CMM experience
- High tech air bearing design incorporating the latest materials technology
- Smallest overall footprint of any equivalent size CMM
- Individual locks and fine adjust hand wheels on each axis
- Suitable for the quality audit room and workshop environment
- Anti-vibration protection from local machine tools as standard
- Comprehensive range of probing options and accessories
- Temperature compensation option for unstable environments
- Optional CMM camera system option for non-contact inspection
- Unique inexpensive CNC upgrade kit
Package
- Aberlink 3D measurement software for touch probe feature inspection
- Computer system, keyboard, mouse, colour printer, 22″ flat screen monitor
- Aberlink 3D measurement software user guide
- Axiom too air bearing, aluminium and granite CMM
- Steel CMM workbench with keyboard and mouse sliding shelf
- PC mounted machine controller PCI card
- Individual locks and fine adjust hand wheels on each axis
- Axiom too CMM user guide

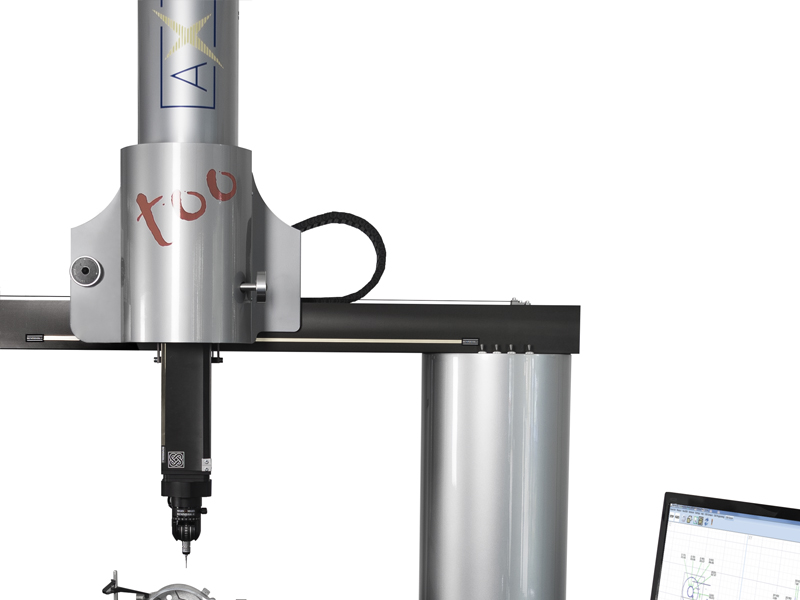

- Renishaw TP8 manual indexing probe head and integrated probe
- Aberlink basic probe stylus kit
- Aberlink Ø19mm sphere CMM requalification kit
- Post installation on-site verification test
- User training course – 2 trainees, 2 days
- 12 months applications telephone helpdesk support
- 12 months full parts and labor warranty
Options
- Common Probe Options
Our most popular manual probe upgrade is the Renishaw MH20i manual indexing probe.
For more help selecting the right probe for your application, view our probe head comparison
Spec

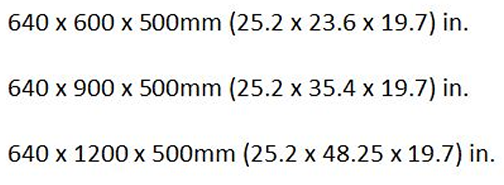

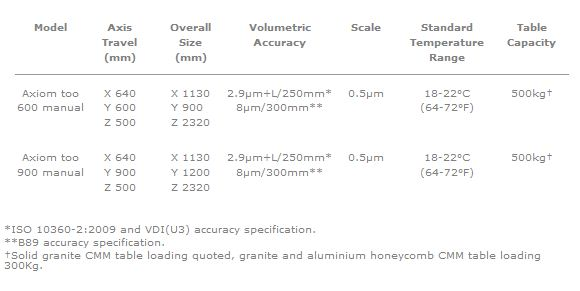

| Axis Travel (mm) | X 640 Y 600, 900 Z 500 |
| Overall Size (mm) | X 1040 Y 900, 1200 Z 2320 |
| *Volumetric Accuracy | TP20 (2.4 + 0.4L/100) µm |
| Scale Resolution | 0.5µm |
| **Optimum Temp Range | 18 – 22°C |
| Operational Temp Range | 5 – 45°C |
| Table | Honeycomb aluminium & granite or solid granite |
| Table Load Capacity | 300kg (Honeycomb) or 500kg (Solid) |
| Air Consumption | 50 l/min (1.8 cfm) |
| Required Air Pressure | 5 bar (72 psi) |
*Maximum Permissible Error MPEE within the thermal limits defined for optimum temperature range. **Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m
